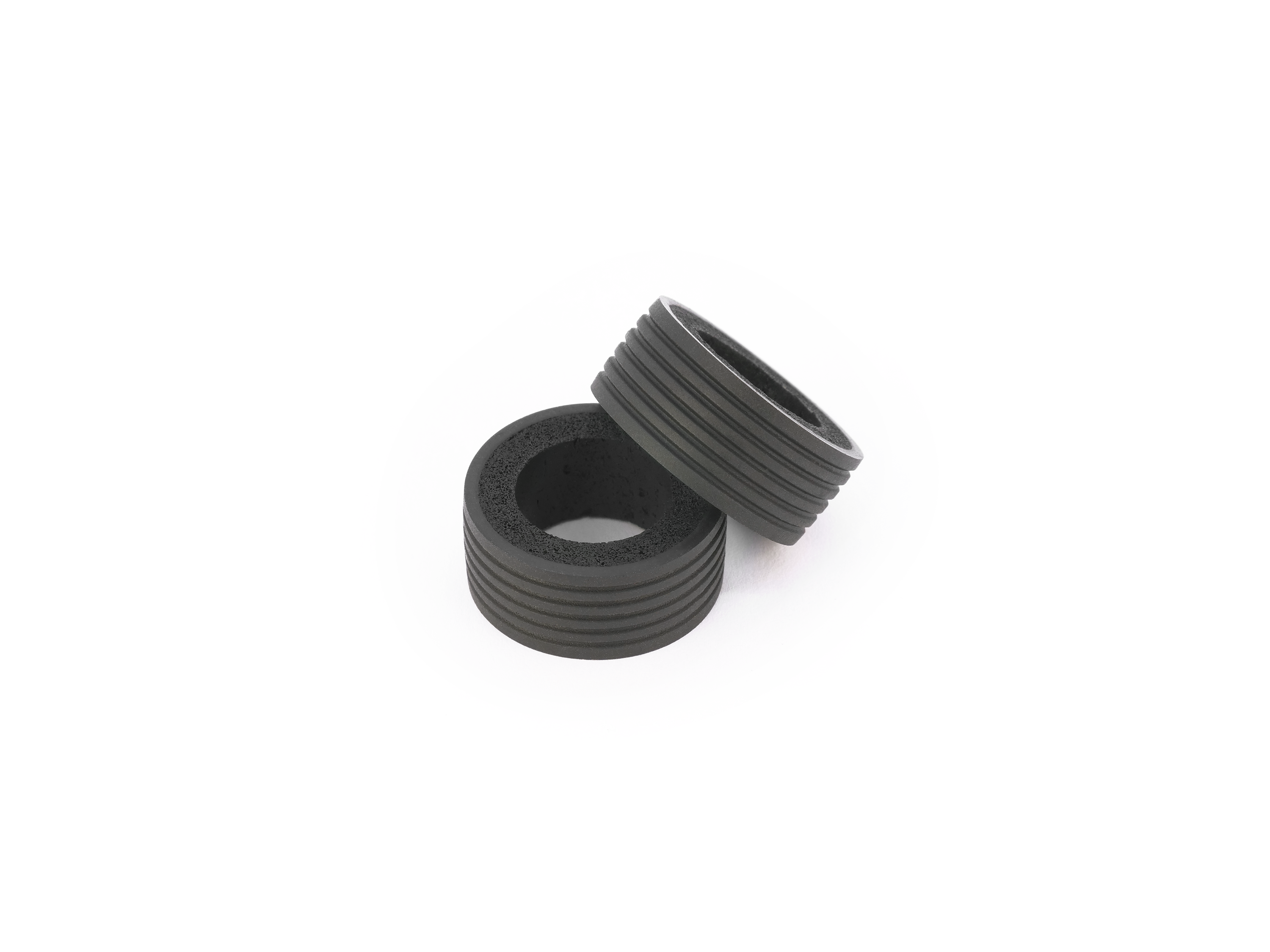

Combining the grip of sticky rubber with the impact absorption and weight savings of foam! These tiny hybrid material tyres are ideal for small projects, and will make the most of our powerful RBN10 and RBN20 motors!
About 26mm in diameter as-is (unstretched), we recommend stretching them over a hub to around 30mm. You can go a little further, but ideally no further than 35mm. Whilst the stretch alone should provide plenty of grip on a hub, glue is recommended to create a robust wheel against side-loads or damage! And if you’re designing a wheel, why not print it through our 3D printing service?
A single package contains:
- 2x Tyres
The key technical details are:
- Dimensions (unstretched) (OD*ID*W): ⌀~26.5*⌀~16*11.3mm
- Dimensions (stretched to 30mm) (OD*ID*W): ⌀30*⌀~21*~10.6mm
- Note that as you stretch the tyre, the wall thickness and width will decrease!
- Weight: 2.9g
- Hardness (estimated): 20 Shore A
Click here to download a 3D model of the tyre stretched to 30mm (opens Google Drive)
