At their nominal voltage of 6V, our N10 motors stall at 1.05A with a stall torque of up to 0.6 kg/cm. They may be micro, but they sure are mighty!
A single package contains:

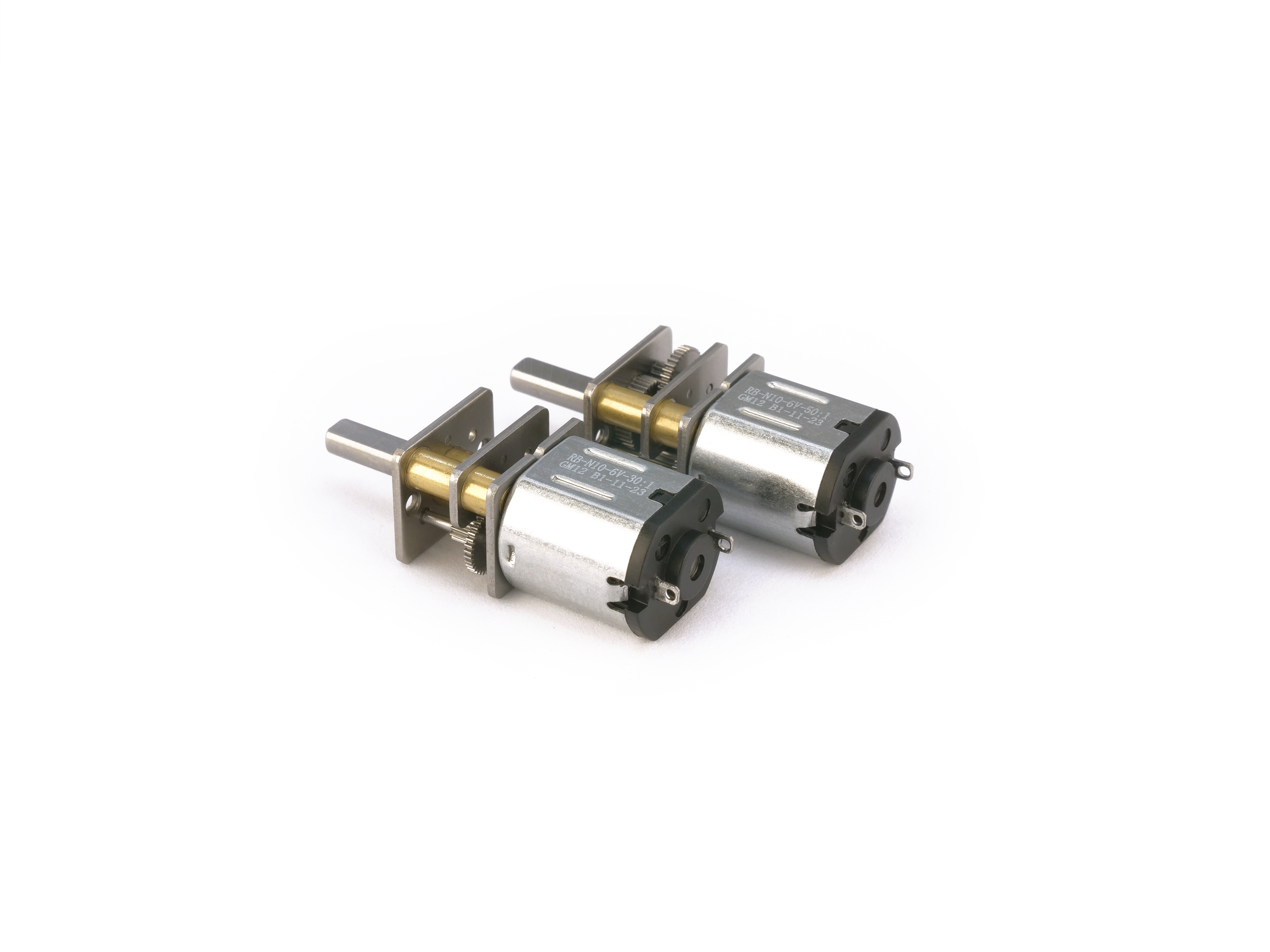

- 2x gearmotors (of the chosen ratio)
The N10 motor is a shorter version of the classic N20. When combined with the same GM12 class of gearbox as our N20 range, the N10 offers space and weight savings whilst maintaining an impressive amount of power. In fact, our N10 motors outperform the majority of N20s on the market (thanks to cramming as much copper inside as is physically possible!) and it’s only next to our own N20 variants that you may be trading size for all out power.
We have been able to strike this balance of affordability and performance by combining our own experience with that of our factory network. These are not our only high power brushed motors, we’re making a habit of this! Check out the bigger RBN20 version of this product, the Mars RB180, Mars RB370 and Saturn RB775 (coming soon), all of which target the hobby robotics market, where power must come at a justifiable price!
The key physical details are:
- Dimensions (W*H*L): 12*10*~23.5mm + ~9.5mm D-shaft
- Shaft dimensions (D*L): ⌀3*~9.5mm + 9mm long flat section
- Weight: 8g
- All metal construction including steel gears and gearbox endplates
Electrical attributes:
- Input voltage: nominally 6V, 0.4-12V (ideal for 2s LiPo)
- No-load RPM (10:1/20:1/30:1/50:1): ~3050/~1490/~980/~580 RPM
- Loaded RPM (10:1/20:1/30:1/50:1): ~2000/~1100/~860/~480 RPM
- No-load current (at 6V): ~0.085A
- Working current (at 6V): 0.2A-0.8A
- Stall current: 1.05A
- Stall torque (10:1/20:1/30:1/50:1): 0.15/~0.3/~0.45/~0.6 kg/cm
Need a higher quantity? Feel free to email sales@ranglebox.com to enquire about bulk order discounts!
