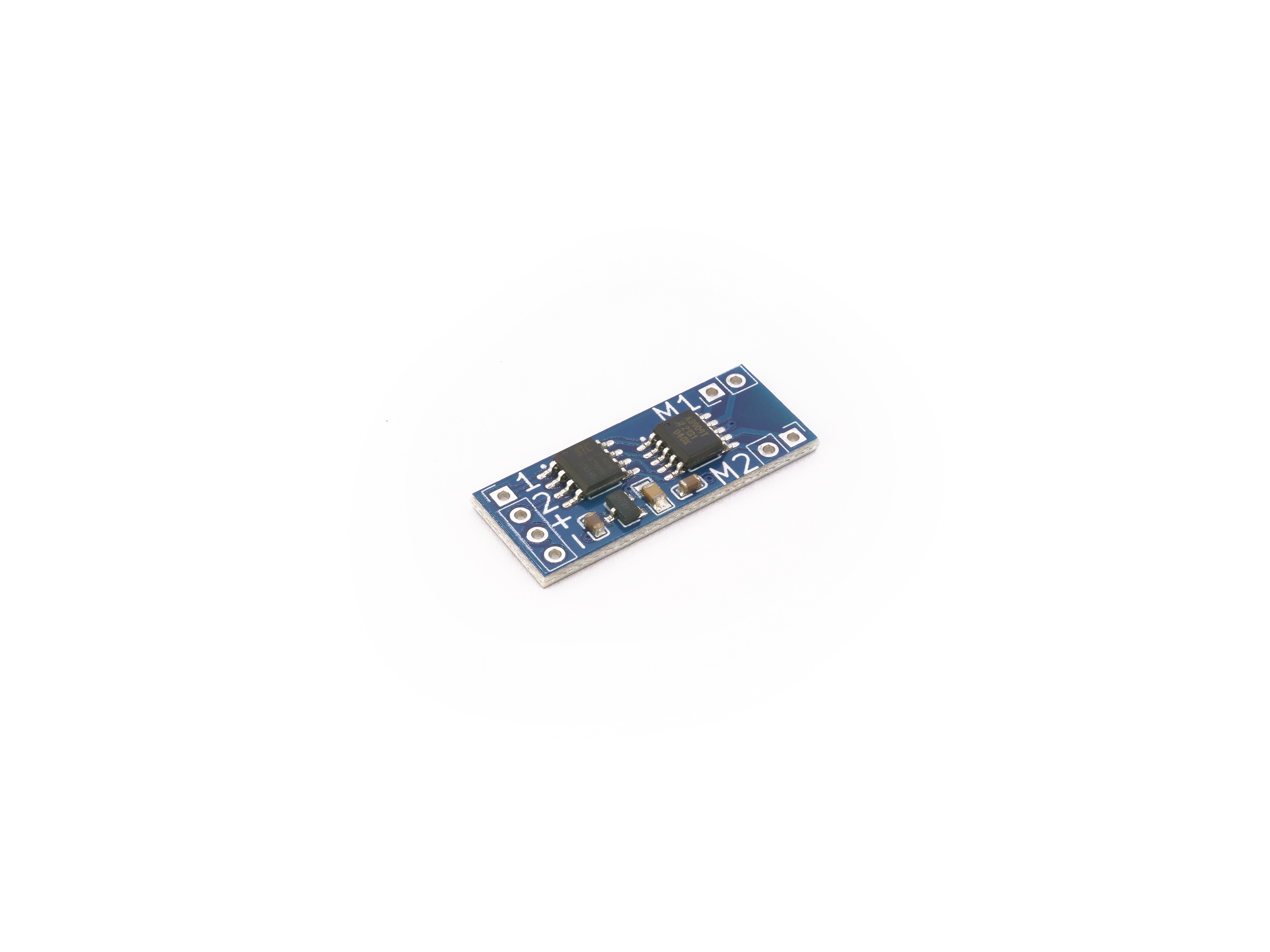

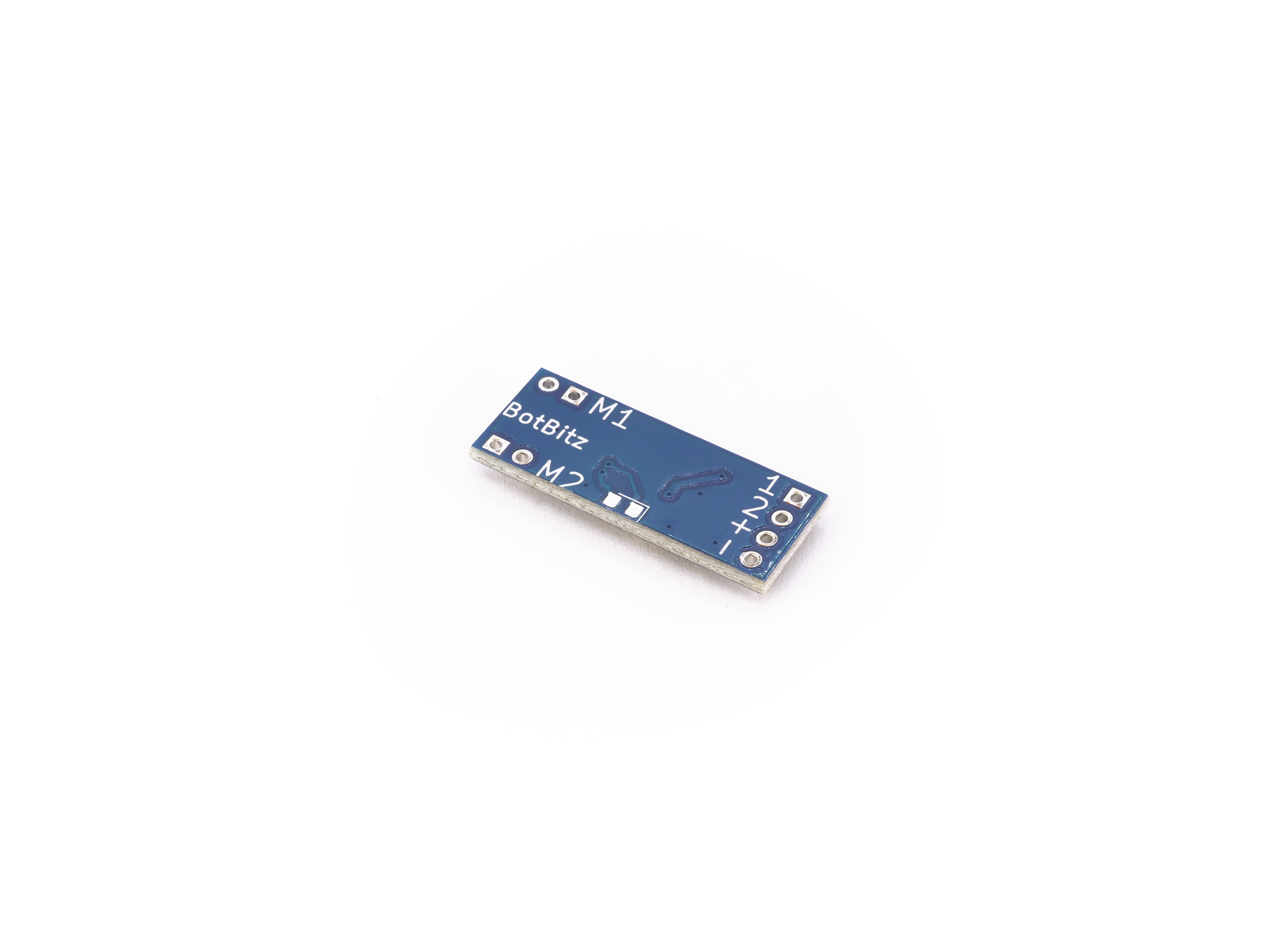

Developed by BotBitz, our Australian partners in filling robotics niches, the SmallESC is your basic garden variety tiny dual channel motor controller. This is pure simplicity, at a low price to match!
The SmallESC was made specifically to pair with small brushed gearmotors, exactly like our RB-N10 and RB-N20. It’ll run any other brushed motor up to a current limit of 1A!
A single package contains:
- 1x BotBitz SmallESC
The key technical details are:
- Dimensions (W*H*L): 11.2*3.2*28mm
- Weight: 1.4g
- Channels: 2
- Voltage rating: 4.5-8.4V (2s LiPo)
- Current rating: 1A (current limited)
- Does not have a BEC or channel mixing
You can find out more about the SmallESC, and find links to 3D models, over on the BotBitz product page!
