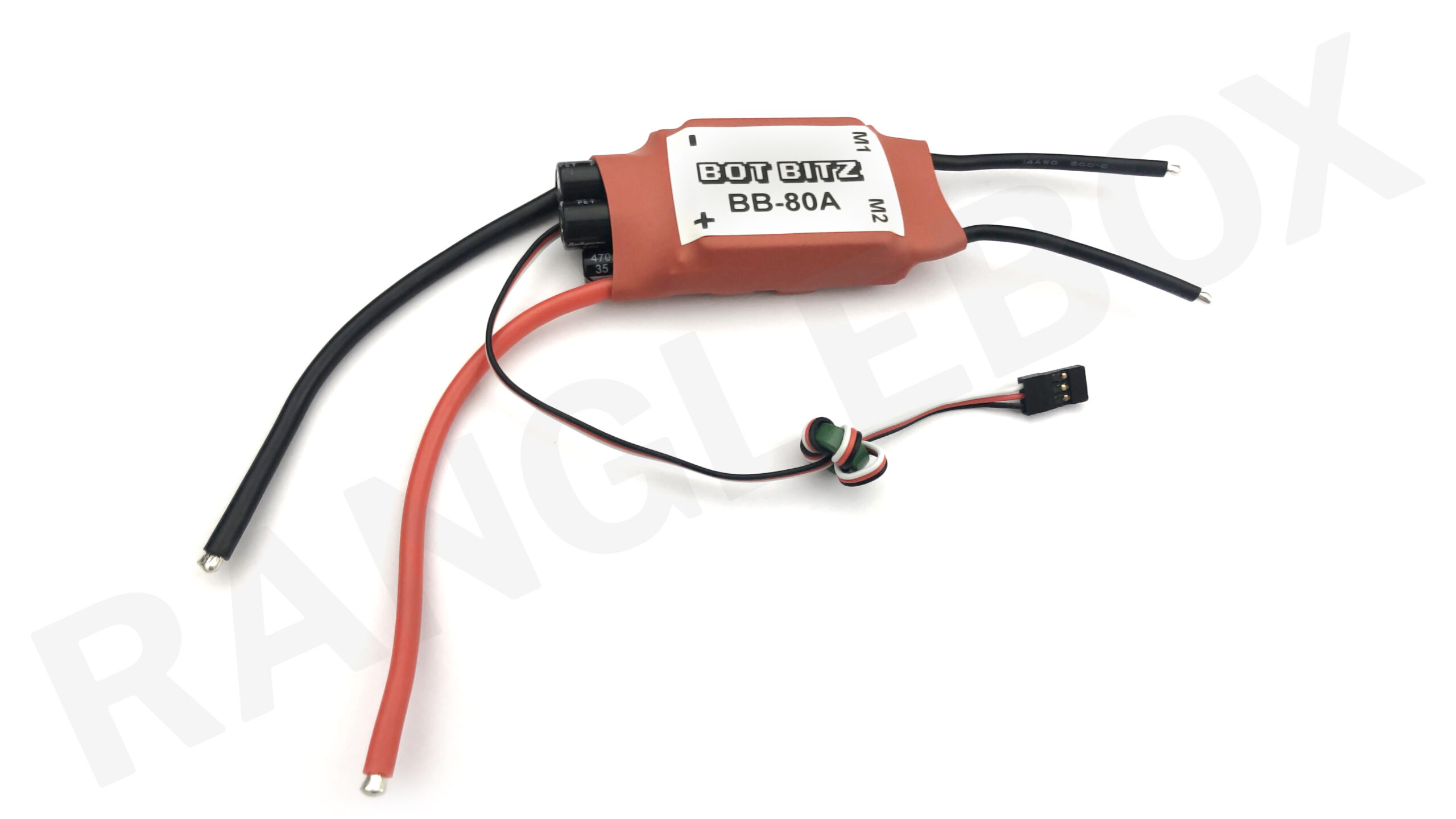

Botbitz – 80a Brushed ESC


Out of stock

Ranglebox is the official UK/EU supplier for Botbitz, an Australian robotics parts company. This is their largest brushed electronic speed controller (ESC), capable of flowing an immense 80 amps.

The Botbitz 80a Brushed ESC starts life a brushless speed controller. Botbitz modify these with custom firmware, converting them to brushed motor controllers. With their slim and lightweight design they are an excellent choice for high power brushed motor control, at an affordable price!

Key stats:

  • Motor type: Brushed
  • Voltage range: 7.2 – 24V
  • Current handling: 80a (40sec) / 100a (10 sec)
  • Battery Eliminator Circuit (BEC): Yes
  • Control: Fwd/Rev/Brake
  • Dimensions in mm: 75L (+ wires) * 40W * 18H
  • Weight: 90g (incl. wires)
  • Wire type: High temp. flexible silicone
  • Programmable: Yes – with the Botbitz Programming Box


These ESCs are the ultimate in plug-and-play. In keeping with all modern hobby RC gear: The red and black 12awg wires are the ESC’s power-in, the two black 12awg wires are the ESC’s output. The small three-pin connector (standard Futaba plug) is the radio control input which plugs into your radio set’s receiver. Be sure to connect the radio and power inputs in the correct polarity; reverse polarity may irreversibly damage your ESC and surrounding electronics.

Weight 0.25 kg
