25mm Gearmotor – Mounting Bracket


62 in stock (can be backordered)

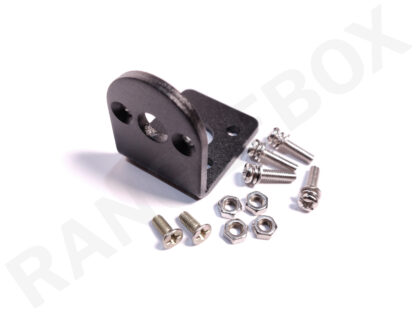

These L shaped aluminium brackets are designed to mount a 25mm gearmotor. They come with all of the associated hardware for mounting to your project, and the two short screws for fastening a motor.

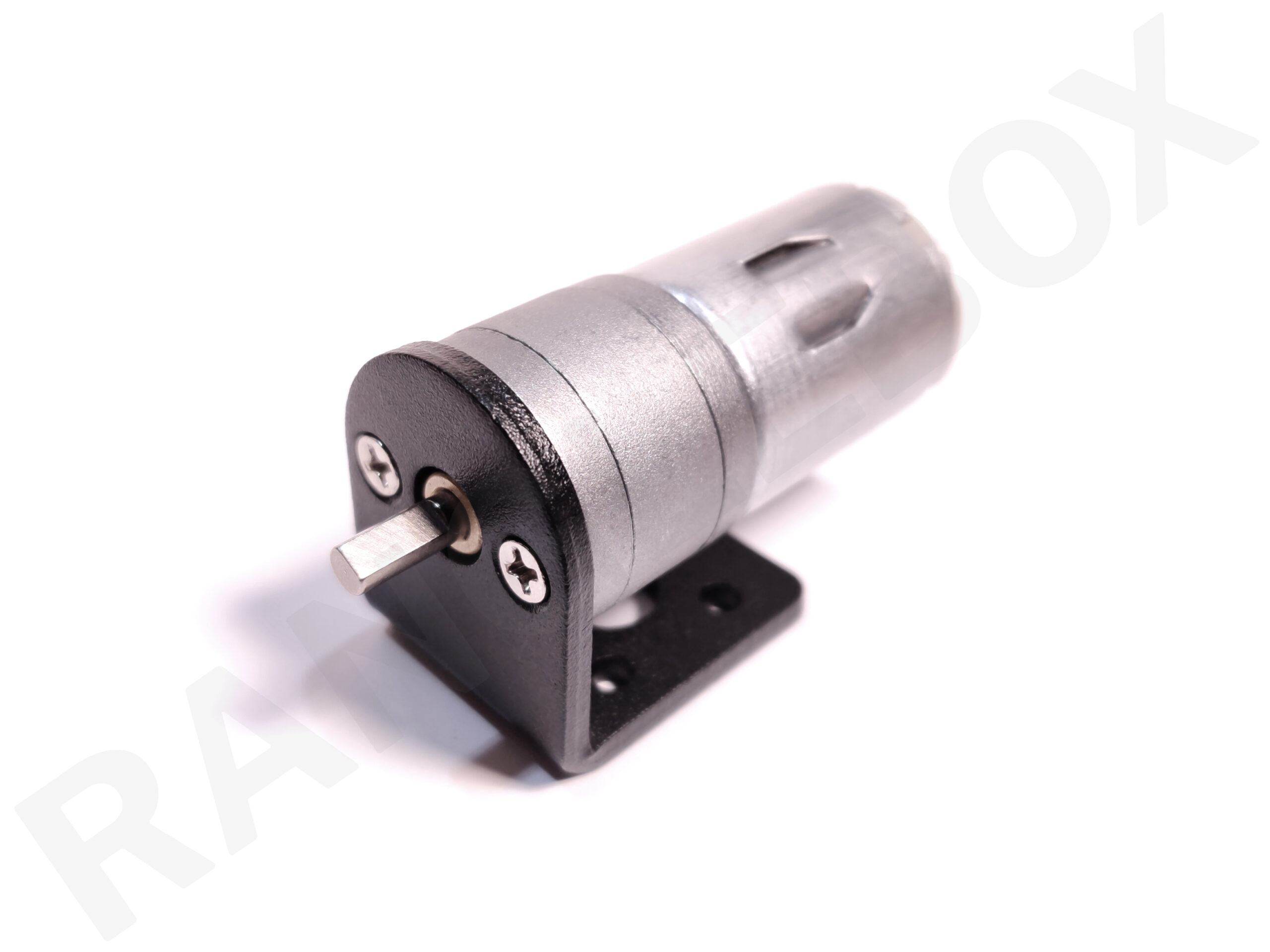

They are shown here with our 25mm gearmotor and 4mm shaft hub as an ideal setup, sold separately!

Key stats:

  • Overall dimensions: 26W*34H*32.5D
  • Mounting: M3
  • Material: Aluminium
  • Thickness: 3mm
  • Colour: Black
  • Weight: 11g

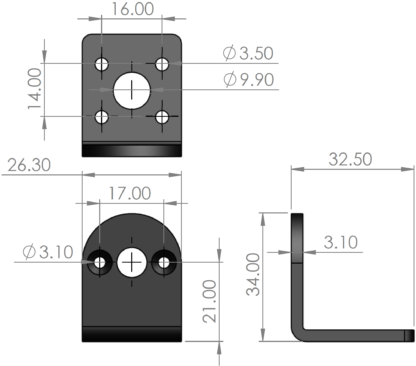

  • Drawing:

Ranglebox SKU: RB25GMLB

Additional information

Weight 0.1 kg
