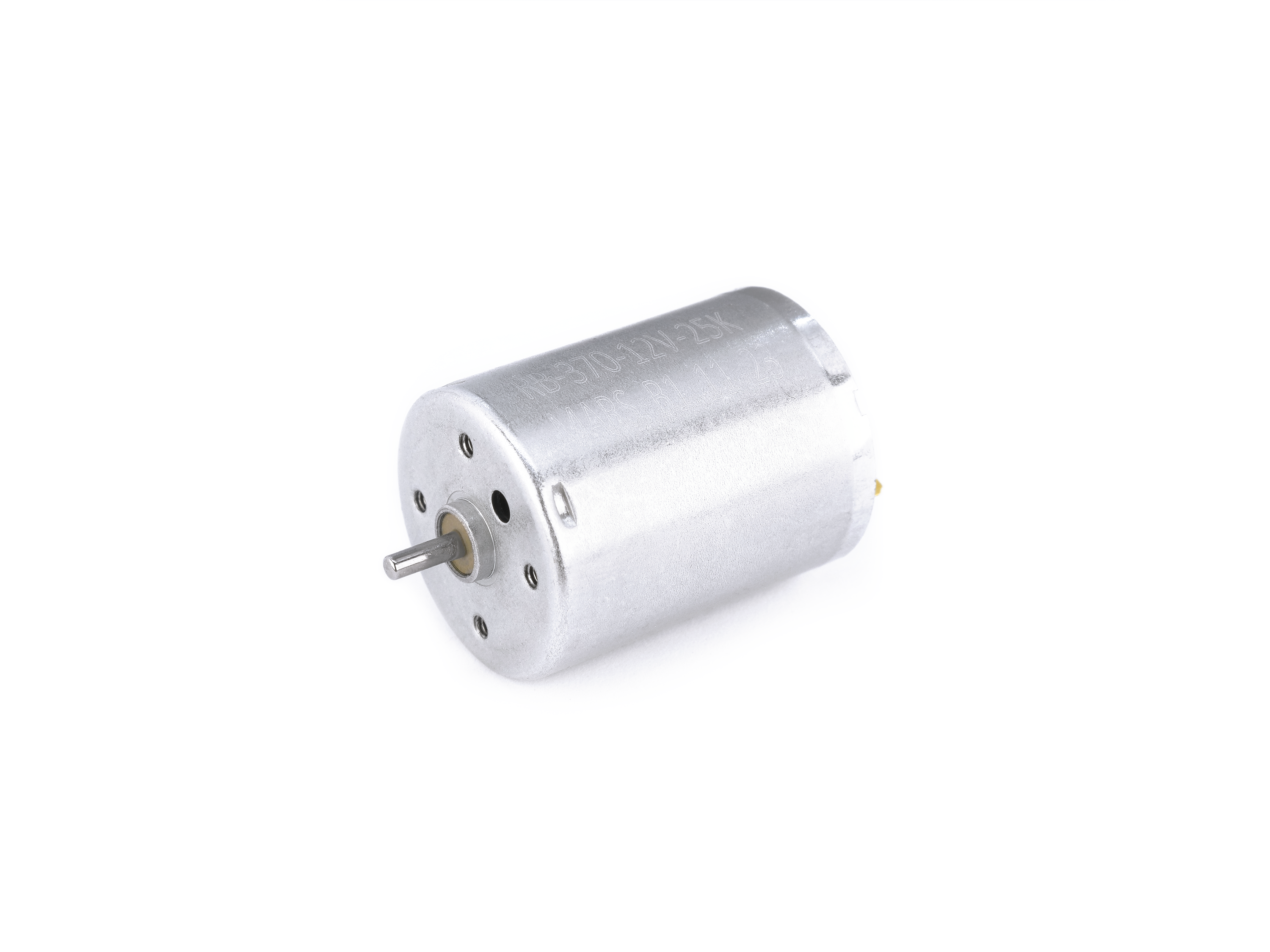

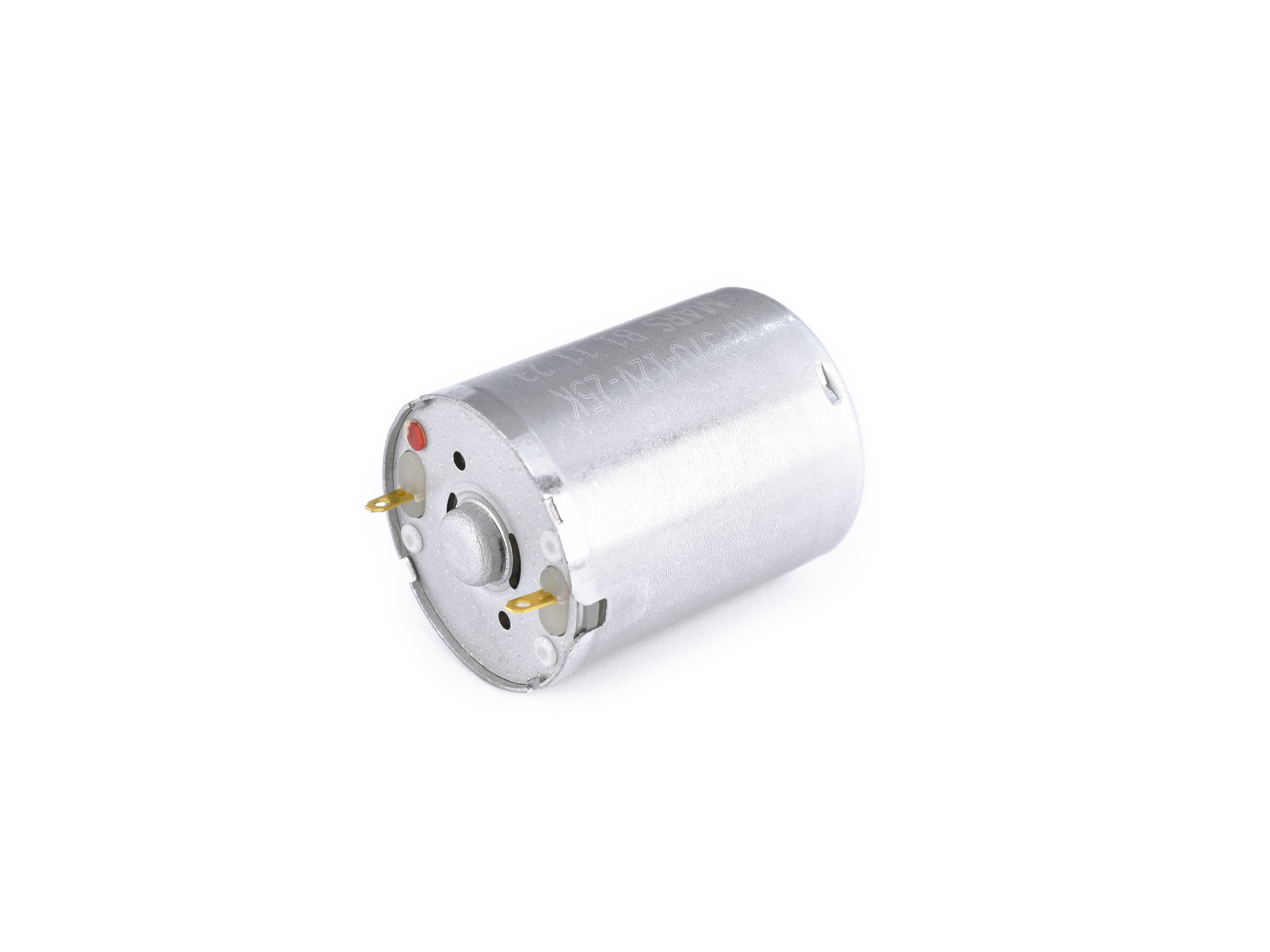

The Mars RB370 is our take on the standard 370 class of motor, and we see it as the RB180’s gym-going cousin, meaning it has been developed with the same goal of striking the balance between performance, reliability and price. Steadfast power is the RB370’s game. In numbers, that means a nippy 25,000 RPM at 12V and a stall current of 12A.
Featuring real carbon brushes and neutral timing.
A single package contains:
- 1x motor
The key physical details are:
- Dimensions (D*L): ⌀24.2*~34.5 + ~7mm shaft
- Shaft dimensions (D*L): ⌀2*~7mm (measured from motor face. Stick-out from bushing ~6mm)
- Face mounting holes: ⌀16mm M2x4 (note, not the typical 370 class pattern, but a lot more sensible)
- Weight: 45g
- Stamped steel housing with carbon brushes
Electrical attributes:
- Input voltage: nominally 12V, 0.6-15V (ideal for 3s LiPo)
- No-load RPM: ~25,000 RPM
- Loaded RPM: ~23,000 RPM
- No-load current: 0.33A
- Working current: 0.4A-10A
- Stall current: 12A
- Stall torque: 0.35 kg/cm
We can supply this motor or any “standard” model of brushed motor like it in higher quantities. Please get in touch at sales@ranglebox.com if you require a custom solution at scale.
