Pluto – Gear Train


Availability: In stock (can be backordered)

Item quantity discounts available! Order 5+ for 5% off,  or 10+ for 10% off! Add to cart to apply!

Pluto isn’t a planet gear, it’s a spur gear!

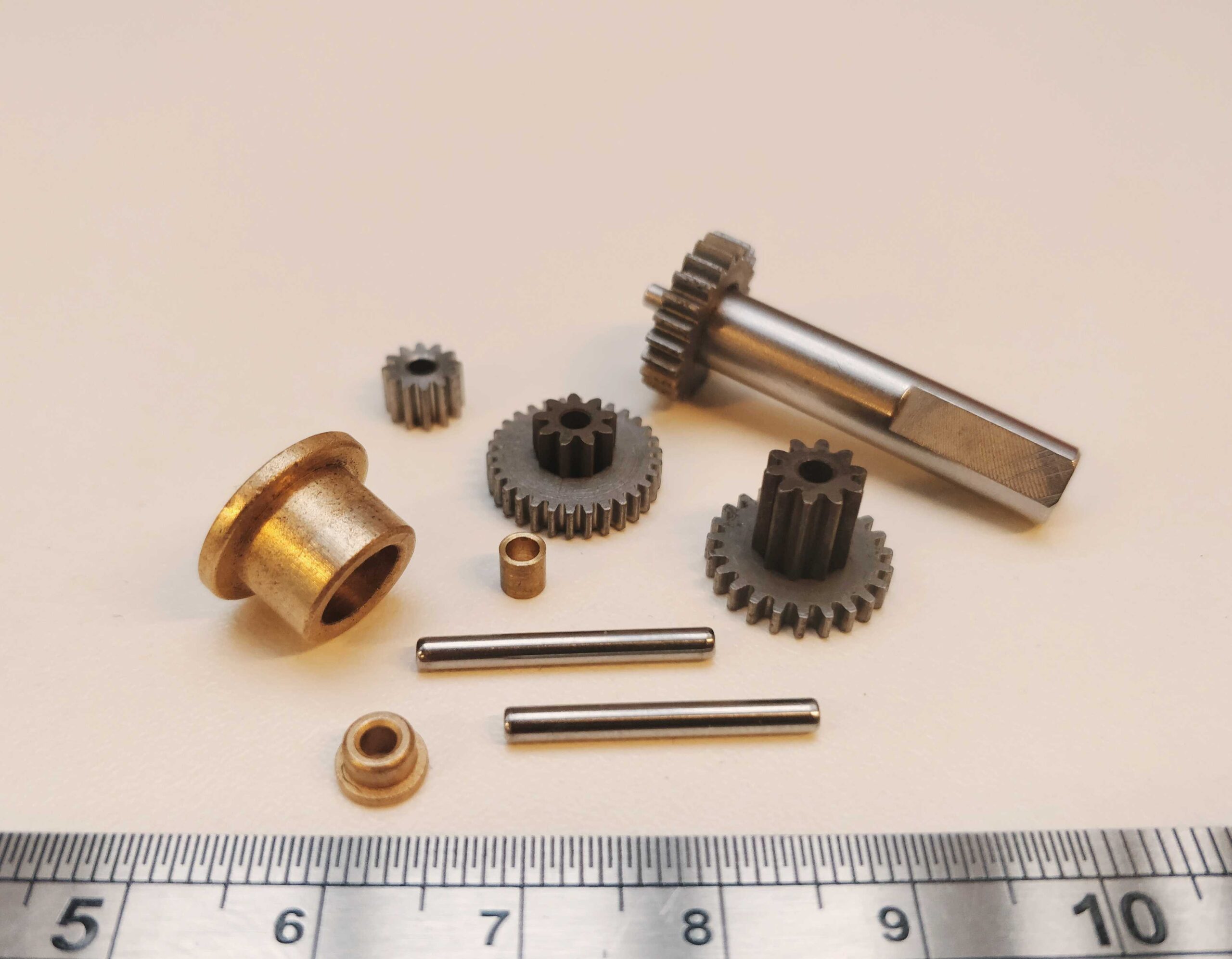

This is a super tough micro spur gear train, complete with bushings, idle stage pins and a press fit motor pinion. This is ideal for small scale robotics drive systems which require high torque handling in a tiny form factor. Design your own casing to fit your application!

Key stats:

  • Module: 0.4 – 0.5
  • Final gear ratio: ~15:1
  • Pinion bore: ø2mm*4mm long (tight press fit)
  • Output shaft: ø6mm with a D-flat
  • Materials: Steel gears and pins, bronze bushings
  • Weight: 17.5g

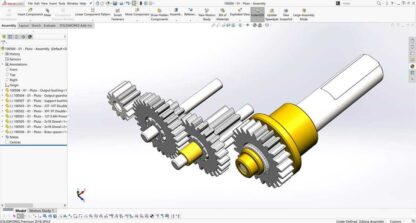

Click here to download a 3D model of the complete Pluto assembly (opens Google Drive)

This set is the ideal foundation for your awesome new super compact, super tough mini gearbox! It is of a similar scale and style to what’s inside our 12v 1000RPM Gear-motor, just significantly more robust (if a little less plug-and-play)!

Ranglebox SKU: RB-PLUTO-01

Weight 0.02 kg
