Shaft Hub – 4mm


22 in stock (can be backordered)

SKU: RBHUB4 Category: Tags: , ,

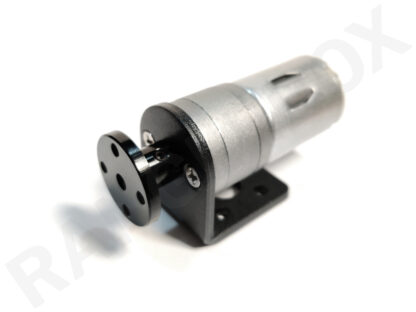

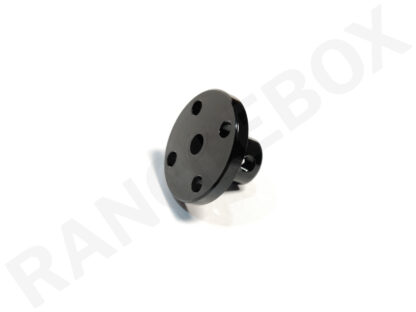

These aluminium hubs are designed to fit wheels or other components to 4mm motor shafts. The mounting holes are 3mm, and each hub comes with a couple of M3 grub screws as standard.

Key stats:

  • Overall dimensions: ø22.2*13D
  • For shaft size: 4mm
  • Mounting: M3

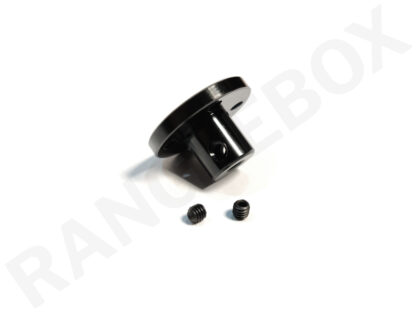

  • Grub screws: M3 thru 180°
  • Material: Aluminium
  • Colour: Black
  • Weight: 4.5g

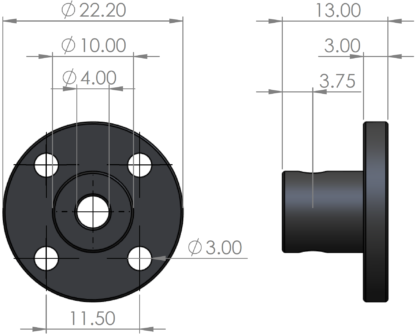

  • Drawing:

Ranglebox SKU: RBHUB4

Additional information

Weight 0.1 kg
