Shaft Hub – 6mm

£4.00

13 in stock (can be backordered)

SKU: RBHUB6 Category: Tags: , ,

Description

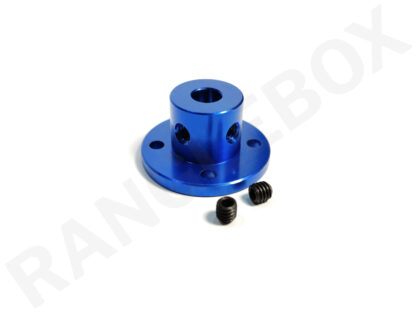

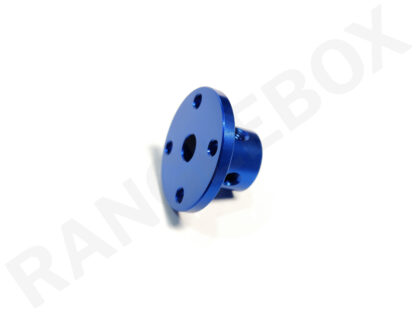

These aluminium hubs are designed to fit wheels or other mechanisms to 6mm motor shafts. The mounting holes are 3mm, and each hub comes with a couple of M4 grub screws as standard.

Key stats:

  • Overall dimensions: ø27.9*15D
  • For shaft size: 6mm
  • Mounting: M3
  • Grub screws: M4 thru 90°
  • Material: Aluminium
  • Colour: Blue
  • Weight: 9g

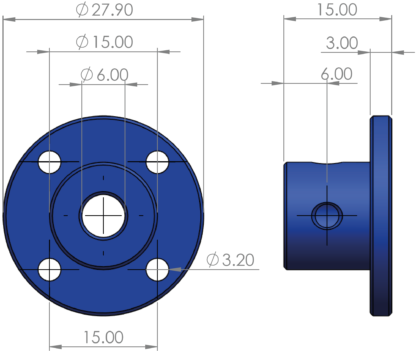

  • Drawing:

Ranglebox SKU: RBHUB6

Additional information

Weight 0.1 kg
