Maytech – 50A Brushless Controller for VESC® Software

£109.00

8 in stock (can be backordered)

SKU: RBESC50 Category: Tags: , , , , , ,

Description

As one of the most prominent developers of RC equipment in the world, Maytech Electronics offer incredible quality and performance with every ESC and motor in their catalogue. Ranglebox is proud to have a strong relationship with Maytech, having visited their offices in China and collaborated on multiple SKUs since 2017.

Ranglebox is the only recognised UK-based supplier for Maytech products!

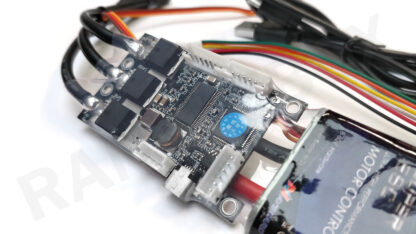

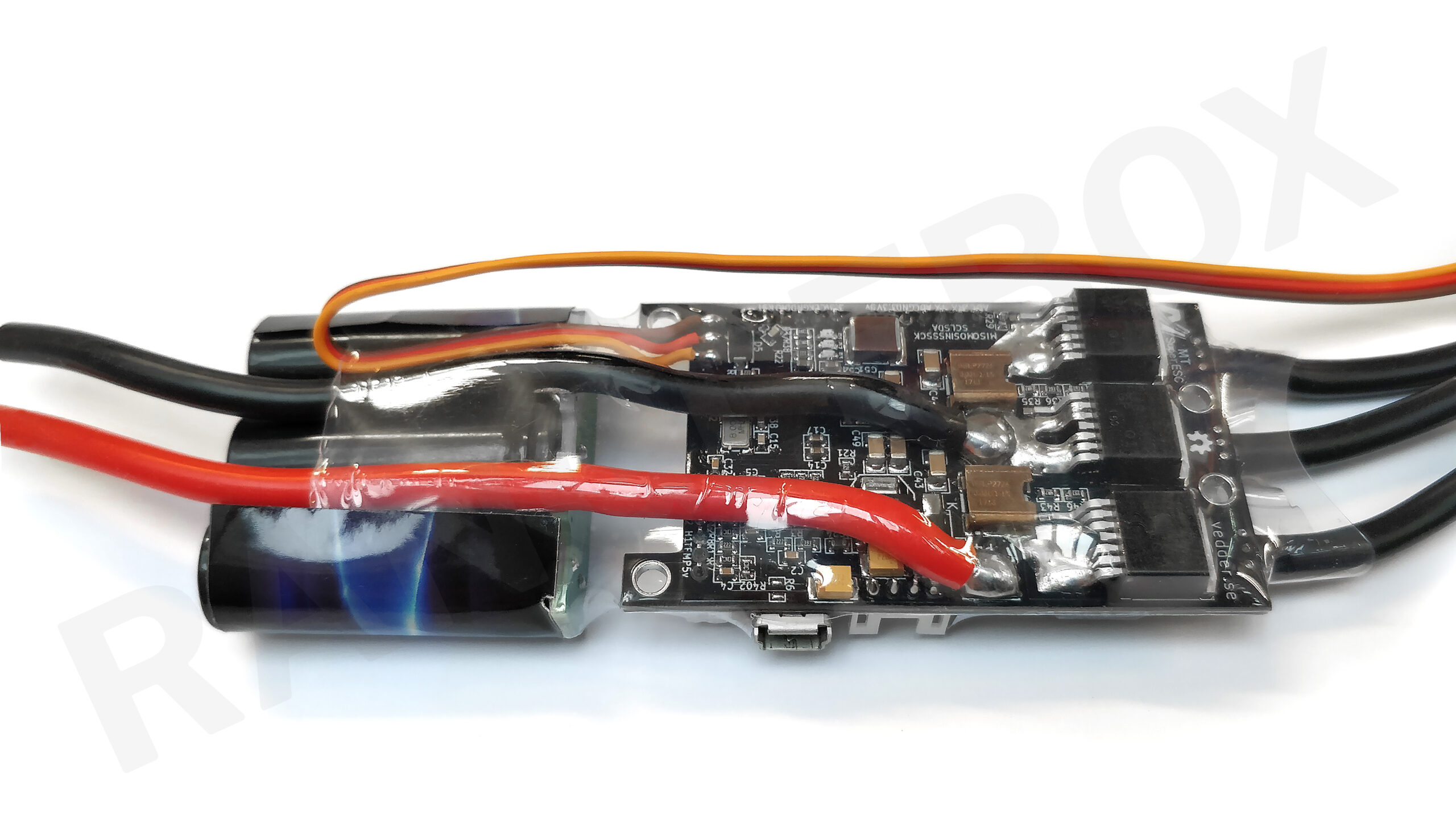

This is Maytech’s build of the open-source ESC design developed by Benjamin Vedder. Maytech’s controllers are some of the best mass-produced VESC® Software compatible ESCs, and this 50A model is extremely well proven in the field. With infinitely adjustable settings behind the easy-to-use VESC® Tool, you can tune small-medium sized brushless motor systems for practically any application.

Quick stats:

  • Overall dimensions: 50mmW*120mmL*16mmD (including capacitors, not including wires)
  • Weight: 80g
  • Input LiPo cells (s): 2s-12s
  • Current (amps): 50A

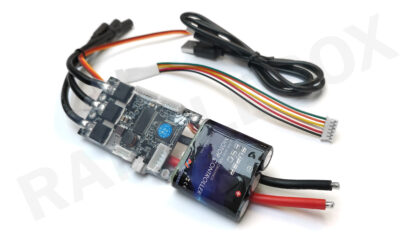

Supplied with a USB cable for setup and a sensor lead adapter to aid compatibility.

You can find out much more about the origin of this design from Mr. Vedder’s notes!

CAD model: X_T

Ranglebox SKU: RBESC50

Additional information

Weight 0.25 kg
